EOTECH EXPS2-2 Holographic Sight 68 MOA RING with 1MOA Dot

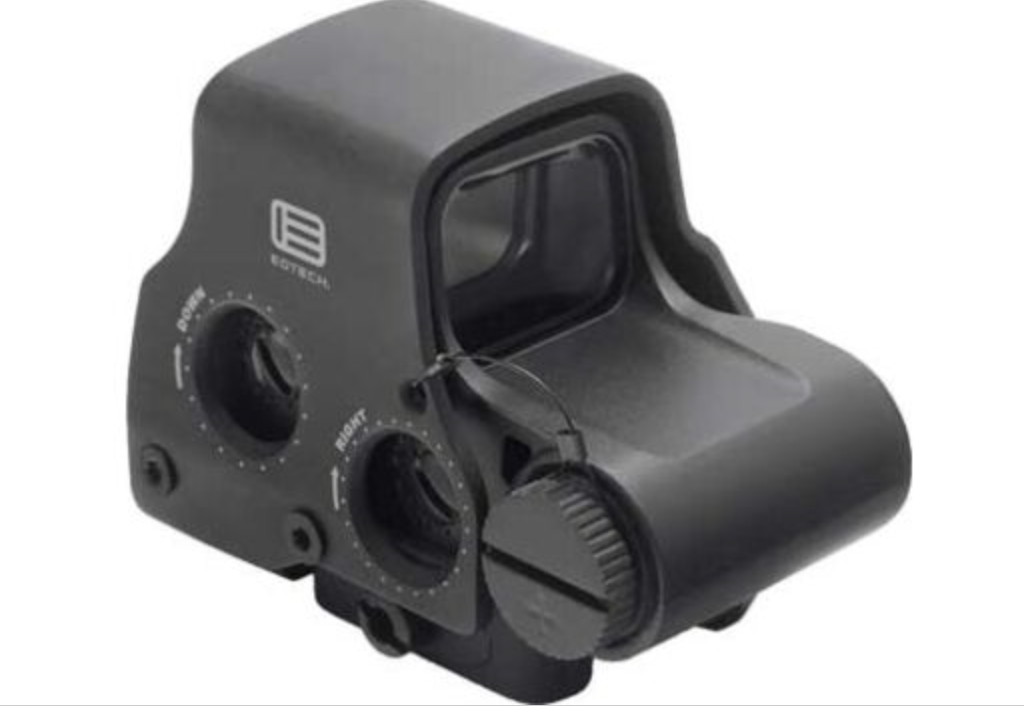

The HWS EXPS2™ maximizes rail space with its compact size and allows for co-witnessing of iron sights. It has convenient side buttons to add a magnifier and features an adjustable, locking, quick-detach lever for easy attachment and removal. An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.

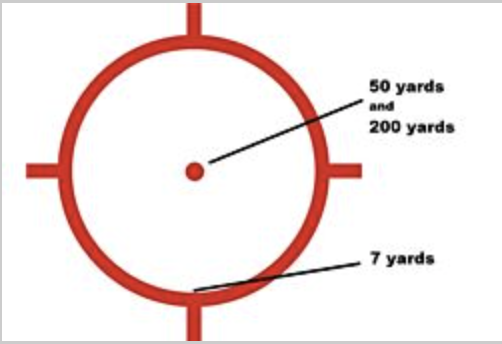

EOTECH One Dot Reticle
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
FEATURES:
Length: 3.8 in (96.5mm)
Width: 2.3 in (58.4mm)
Height: 2.9 in (73.7mm)
Weight: 11.2 oz. (317.5g)
Mount: 1" Weaver or Mil-Std 1913 rail
Power Source: 3 volts, (1) 123 Lithium battery
Brightness: 20 settings
Water Resistance: 10 ft. (3m)
Battery Life: Approx. 600 hours at nominal setting 12 at room temperature
Color/Finish: Black
Night Vision Compatible: No
Reticle: 68 MOA ring with 1 MOA dot
Mount: Quick-detach lever fits both 1" Weaver & MIL-STD 1913 rail
